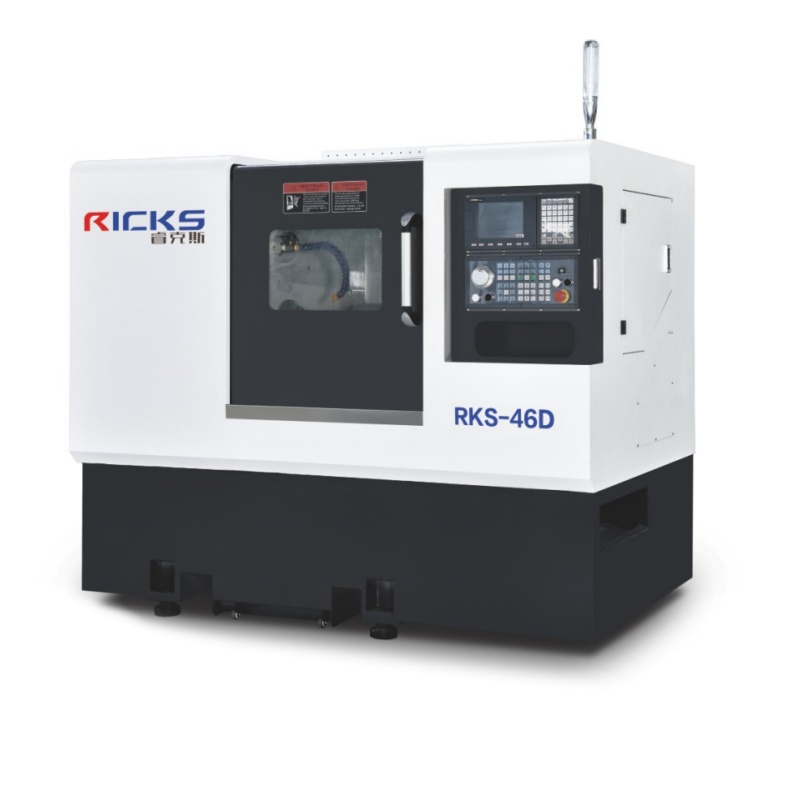

Cutter Lathe With Turret
APPLICATION
The machine is suitable for processing batch continuous heavy parts within a diameter of 46mm, with high-precision, high-efficiency, and multi-functional requirements, and widely used in motorcycles, optical instruments, medical equipment, oil pipelines, special motors, hydraulic and pneumatic engineering and other industries.
|
Item |
Unit |
RKS-46D |
|
|
Processing Capacity |
Max rotation diameter |
mm |
Φ420 |
|
Max turning diameter |
mm |
Φ100 |
|
|
Max cutting length |
mm |
230 |
|
|
X axis travel |
mm |
280 |
|
|
Z axis travel |
mm |
300 |
|
|
Spindle |
Spindle nose |
|
A2-5 |
|
Spindle through-hole diameter |
mm |
Φ56 |
|
|
Max bar diameter |
mm |
Φ45 |
|
|
Max rotation speed |
r/min |
6000 |
|
|
Spindle motor power |
kw |
7.5 |
|
|
Spindle drive power |
kw |
7.5 |
|
|
Chuck diameter/size |
inch |
6” |
|
|
Feed Axis |
X axis positioning accuracy |
mm |
0.005 |
|
Z axis positioning accuracy |
mm |
0.005 |
|
|
X axis repeat positioning accuracy |
mm |
0.002 |
|
|
Z axis repeat of positioning accuracy |
mm |
0.002 |
|
|
X/Z axis fast-moving speed |
m/min |
24/26 |
|
|
X/Z axis motor power |
kw |
1.7 |
|
|
Turret |
Specification |
|
12 Station |
|
Turret |
Specification |
|
12 Station |
|
Tool changing speed |
s |
0.2 |
|
|
Turret motor power |
kw |
1.0 |
|
|
Turret drive power |
kw |
1.0 |
|
|
Cooling Lubricant System |
Cooling pump motor power |
kw |
0.75 |
|
Tank capacity |
L |
70L |
|
|
Others |
Dimension （L*W*H） |
mm |
2200*1400*1760 |
|
Total Power |
kva |
13 |
|
|
Weight |
kg |
2800 |
|
Standard Accessories:
1 pc user manual, 5 pcs turret tool holders, 4 pcs row knife holders, 1 pc foot switches, 1 set hex wrench, 1 pc collect，1 pc stop nut
Optional Accessories：
Chuck, feeder, chip conveyor, manipulator, turret optional
System：Syntec 6TA-E/22TA
Spindle：A2-5/KENTURN/POSA
Spindle motor: Huahong/CTB 7.5KW
Turret: Taiwan Taijia turret/Sanhe turret(63-12 stations /80-12 stations)
Lead Screw：HIWIN//PMI/Japan NSK ( C3 Grade)
Rail Line：HIWIN/Japan NSK(P Grade )
Bearing：Japan NSK
G.W.:3100KG
Power:13KW
 |
 |
 |
|
Product: Sensor |
Product: Locking Ring |
Product: Base Material: 304 Stainless Steel Application: Parts Structure |
|
Item |
Unit |
RKS-46D |
|
|
Processing Capacity |
Max rotation diameter |
mm |
Φ420 |
|
Max turning diameter |
mm |
Φ100 |
|
|
Max cutting length |
mm |
230 |
|
|
X axis travel |
mm |
280 |
|
|
Z axis travel |
mm |
300 |
|
|
Spindle |
Spindle nose |
|
A2-5 |
|
Spindle through-hole diameter |
mm |
Φ56 |
|
|
Max bar diameter |
mm |
Φ45 |
|
|
Max rotation speed |
r/min |
6000 |
|
|
Spindle motor power |
kw |
7.5 |
|
|
Spindle drive power |
kw |
7.5 |
|
|
Chuck diameter/size |
inch |
6” |
|
|
Feed Axis |
X axis positioning accuracy |
mm |
0.005 |
|
Z axis positioning accuracy |
mm |
0.005 |
|
|
X axis repeat positioning accuracy |
mm |
0.002 |
|
|
Z axis repeat of positioning accuracy |
mm |
0.002 |
|
|
X/Z axis fast-moving speed |
m/min |
24/26 |
|
|
X/Z axis motor power |
kw |
1.7 |
|
|
Turret |
Specification |
|
12 Station |
|
Turret |
Specification |
|
12 Station |
|
Tool changing speed |
s |
0.2 |
|
|
Turret motor power |
kw |
1.0 |
|
|
Turret drive power |
kw |
1.0 |
|
|
Cooling Lubricant System |
Cooling pump motor power |
kw |
0.75 |
|
Tank capacity |
L |
70L |
|
|
Others |
Dimension （L*W*H） |
mm |
2200*1400*1760 |
|
Total Power |
kva |
13 |
|
|
Weight |
kg |
2800 |
|
Standard Accessories:
1 pc user manual, 5 pcs turret tool holders, 4 pcs row knife holders, 1 pc foot switches, 1 set hex wrench, 1 pc collect，1 pc stop nut
Optional Accessories：
Chuck, feeder, chip conveyor, manipulator, turret optional
System：Syntec 6TA-E/22TA
Spindle：A2-5/KENTURN/POSA
Spindle motor: Huahong/CTB 7.5KW
Turret: Taiwan Taijia turret/Sanhe turret(63-12 stations /80-12 stations)
Lead Screw：HIWIN//PMI/Japan NSK ( C3 Grade)
Rail Line：HIWIN/Japan NSK(P Grade )
Bearing：Japan NSK
G.W.:3100KG
Power:13KW
|
|
|
|
Product: Sensor |
Product: Locking Ring |
Product: Base Material: 304 Stainless Steel Application: Parts Structure |
