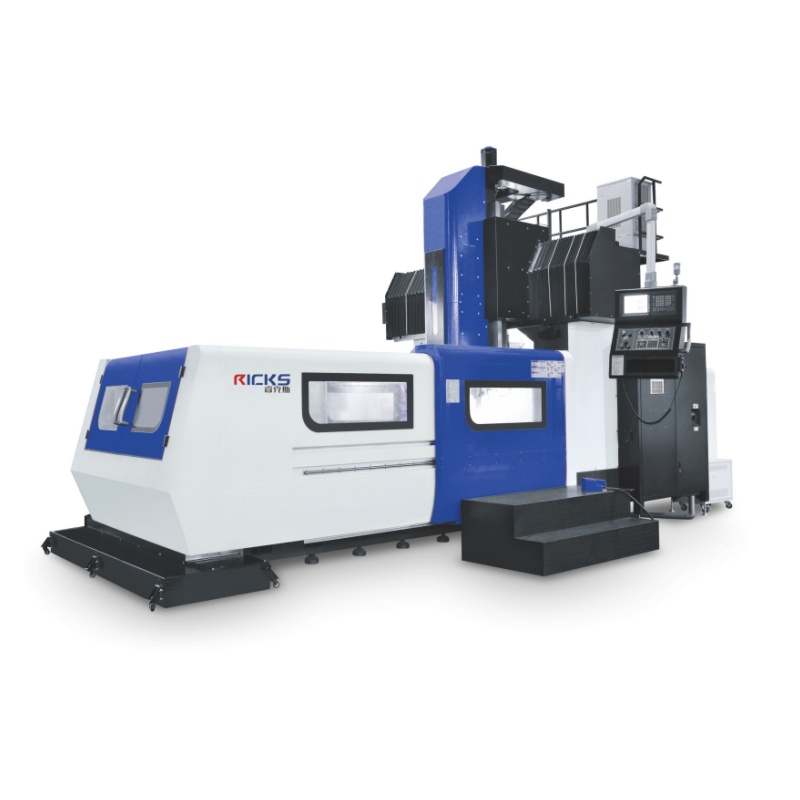

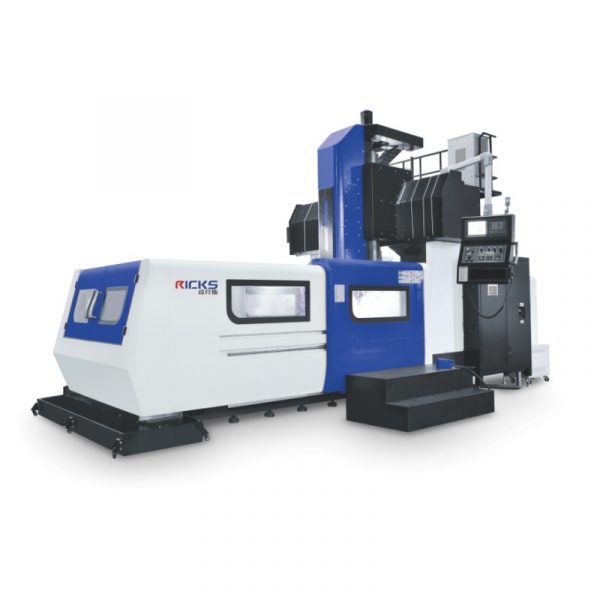

RKS-2016

1. Integrated design of columns and beams, good rigidity, high processing precision and good stability;
2. The three-axis guide rail with roller linear rail, fast dynamic response, high precision and no crawling;
3. The three-axis feed is driven by a motor directly connected to a high-precision ball screw.The fixed pre-stretched structure at both ends of the screw, high transmission accuracy;
4. The spindle is equipped with a belt transmission BT50-6000rpm, and a gear head and electric spindle are optional to meet different processing needs;
5. The Z-axis is equipped with a nitrogen balance device and has good load characteristics;
6. The chip removal of the machine adopts double screw conveyors and a front chain plate chip conveyor, high automation;
7. A timed and quantitative lubrication system, controlled by the electrical system to achieve fully automatic centralized lubrication;

 APPLICATION

It is mainly suitable for high-speed and high-precision processing of parts in auto parts, molds, engineering machinery, valves, rail transit, energy, agricultural machinery, coal mining machinery and other industries;
