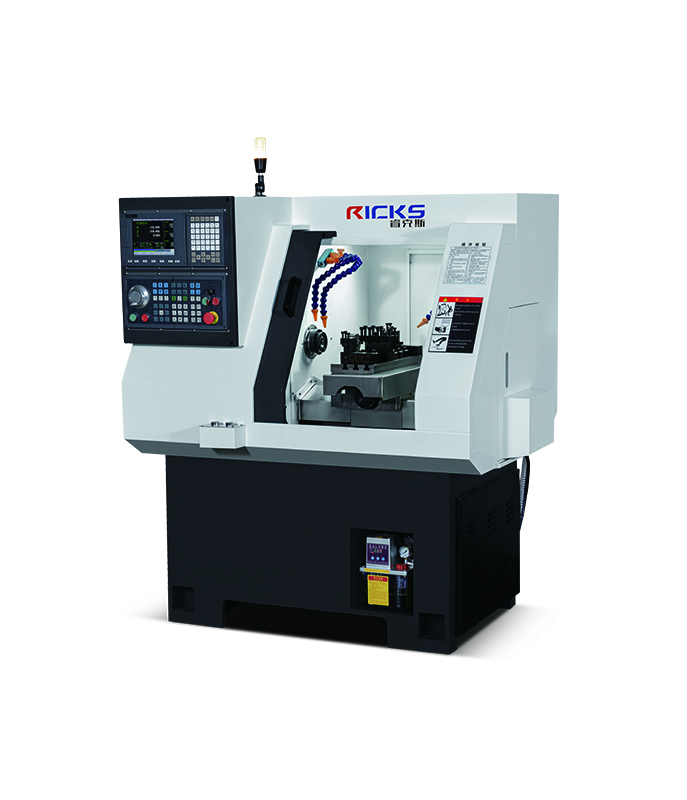

Small Cutter Lathe
APPLICATION
The machine is suitable for processing batch continuous parts within a diameter of /20mm, as well as processing clamping large-diameter single-piece, with high-precision, high-efficiency, and multi-functional requirements, and widely used in new energy vehicles, motorcycles and other industries.
|
Item |
Unit |
RKS-20H |
|
|
Processing Capacity |
Max rotation diameter of bed |
mm |
Φ100 |
|
Max rotation diameter of bed of slide |
mm |
Φ70 |
|
|
Max cutting length |
mm |
180 |
|
|
X axis travel |
mm |
450 |
|
|
Z axis travel |
mm |
220 |
|
|
Spindle |
Spindle nose |
|
Spring collet |
|
Spindle through-hole diameter |
mm |
Φ28 |
|
|
Max bar diameter |
mm |
Φ20 |
|
|
Max rotation speed |
r/min |
5000 |
|
|
Spindle motor power |
kw |
2.2/3.7 |
|
|
Spindle drive power |
kw |
2.2/3.7 |
|
|
Chuck diameter/size |
inch |
N/A |
|
|
Feed Axis |
X/Z axis repeat positioning accuracy |
mm |
0.003/0.003 |
|
X/Z axis positioning accuracy |
mm |
0.005/0.005 |
|
|
X/Z axis fast-moving speed |
m/min |
20 |
|
|
X/Z axis motor power |
kw |
1.0 |
|
|
X/Z axis motor power |
kw |
1.0 |
|
|
Cooling Lubricant System |
Cooling pump motor power |
kw |
0.13 |
|
Tank capacity |
L |
70L |
|
|
Others |
Dimension （L*W*H） |
mm |
1200*900*1500 |
|
Total Power |
kva |
6 |
|
|
Weight |
kg |
1100 |
|
Standard Accessories:
1 pc user manual, 8 pcs row knife holders, 1 pc foot switches, 1 set hex wrench, 1 pc collect，1 pc stop nut
Optional Accessories：
Chuck, feeder, chip conveyor, manipulator optional
System: Syntec 6TA-E
Spindle: Kinsun 20 spindle
Spindle motor: spindle motor CTB 3.7KW
Lead Screw: Taiwan HIWIN/NSK Nakanishi Precision grinding (C3 grade)
Rail Line: HIWIN/PMI Precision (P grade)
Bearing: NSK/NACHI/FAG/KOYO P4
G.W.: 1100KG
Power: 6KW
 |
 |
 |
|

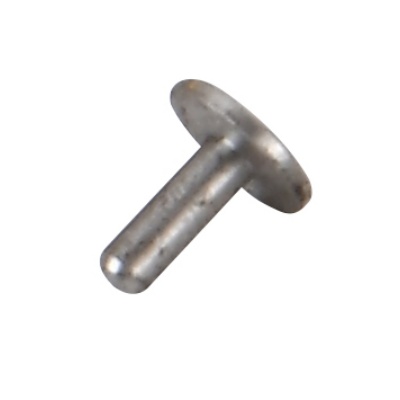

Product: Connector |

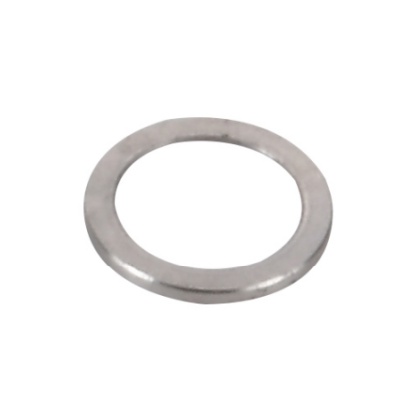

Product: Lens Circle |

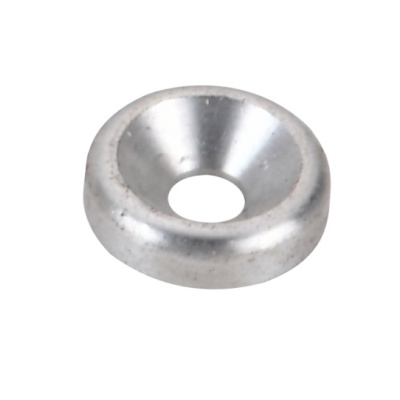

Product: Timble |
 |
||
|
Product: Lens Circle |
|
Item |
Unit |
RKS-20H |
|
|
Processing Capacity |
Max rotation diameter of bed |
mm |
Φ100 |
|
Max rotation diameter of bed of slide |
mm |
Φ70 |
|
|
Max cutting length |
mm |
180 |
|
|
X axis travel |
mm |
450 |
|
|
Z axis travel |
mm |
220 |
|
|
Spindle |
Spindle nose |
|
Spring collet |
|
Spindle through-hole diameter |
mm |
Φ28 |
|
|
Max bar diameter |
mm |
Φ20 |
|
|
Max rotation speed |
r/min |
5000 |
|
|
Spindle motor power |
kw |
2.2/3.7 |
|
|
Spindle drive power |
kw |
2.2/3.7 |
|
|
Chuck diameter/size |
inch |
N/A |
|
|
Feed Axis |
X/Z axis repeat positioning accuracy |
mm |
0.003/0.003 |
|
X/Z axis positioning accuracy |
mm |
0.005/0.005 |
|
|
X/Z axis fast-moving speed |
m/min |
20 |
|
|
X/Z axis motor power |
kw |
1.0 |
|
|
X/Z axis motor power |
kw |
1.0 |
|
|
Cooling Lubricant System |
Cooling pump motor power |
kw |
0.13 |
|
Tank capacity |
L |
70L |
|
|
Others |
Dimension （L*W*H） |
mm |
1200*900*1500 |
|
Total Power |
kva |
6 |
|
|
Weight |
kg |
1100 |
|
Standard Accessories:
1 pc user manual, 8 pcs row knife holders, 1 pc foot switches, 1 set hex wrench, 1 pc collect，1 pc stop nut
Optional Accessories：
Chuck, feeder, chip conveyor, manipulator optional
System: Syntec 6TA-E
Spindle: Kinsun 20 spindle
Spindle motor: spindle motor CTB 3.7KW
Lead Screw: Taiwan HIWIN/NSK Nakanishi Precision grinding (C3 grade)
Rail Line: HIWIN/PMI Precision (P grade)
Bearing: NSK/NACHI/FAG/KOYO P4
G.W.: 1100KG
Power: 6KW
|
|
|
|
Product: Connector |
Product: Lens Circle |
Product: Timble |
|
||
|
Product: Lens Circle |
