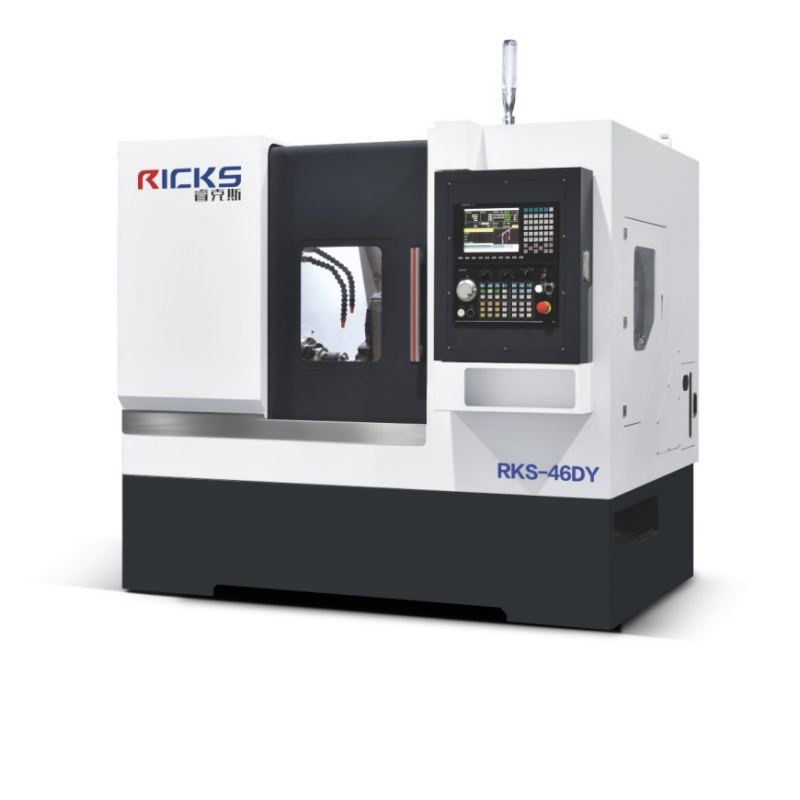

Turn-Milling Compound Machine//With Y Axis and Power Turret
APPLICATION
The machine is suitable for processing batch continuous parts within a diameter of 46mm, which requires turning and milling integrated, as well as processing clamping large-diameter single-piece, with high-precision, high-efficiency, and multi-functional requirements and widely used in new energy vehicles, motorcycles, drones, optical instruments, medical equipment, oil pipelines, hydraulic and pneumatic engineering and other industries.
|
Item |
Unit |
RKS-46DY |
|
|
Processing Capacity |
Max rotation diameter |
mm |
Φ420 |
|
Max turning diameter |
mm |
Φ100 |
|
|
Max cutting length |
mm |
230 |
|
|
X axis travel |
mm |
220 |
|
|
Y axis travel |
mm |
100 |
|
|
Z axis travel |
mm |
300 |
|
|
Spindle |
Spindle nose |
|
A2-5 |
|
Spindle through-hole diameter |
mm |
Φ56 |
|
|
Max bar diameter |
mm |
Φ45 |
|
|
Max rotation speed |
r/min |
6000 |
|
|
Spindle motor power |
kw |
7.5 |
|
|
Spindle drive power |
kw |
7.5 |
|
|
Chuck diameter/size |
inch |
6” |
|
|
Feed Axis |
X axis positioning accuracy |
mm |
0.005 |
|
Y axis positioning accuracy |
mm |
0.005 |
|
|
Z axis positioning accuracy |
mm |
0.005 |
|
|
X axis repeat positioning accuracy |
mm |
0.002 |
|
|
Y axis repeat positioning accuracy |
mm |
0.002 |
|
|
Z axis repeat positioning accuracy |
mm |
0.002 |
|
|
X/Y/Z axis fast-moving speed |
m/min |
24 |
|
|
X/Y/Z axis motor power |
kw |
1.7 |
|
|
Power Head |
Number of forward milling axes |
pcs |
2 |
|
Number of side milling axes |
pcs |
2 |
|
|
Max. processing length of power head |
mm |
230 |
|
|
Max. speed of power head |
r/min |
5000 |
|
|
Power head motor power |
kw |
2.3 |
|
|
Power head drive power |
kw |
2.3 |
|
|
Power Turret |
Specification |
|
15 station |
|
Tool changing speed |
s |
0.1 |
|
|
Turret motor power |
kw |
1.0 |
|
|
Turret drive power |
kw |
1.0 |
|
|
Cooling Lubricant System |
Cooling pump motor power |
kw |
0.75 |
|
Tank capacity |
L |
100L |
|
|
Others |
Dimension （L*W*H） |
mm |
2200*1400*1830 |
|
Total Power |
kva |
17 |
|
|
Weight |
kg |
3200 |
|
Standard Accessories:
1 pc user manual, 4 pcs power turret tool holders, 8 pcs row knife holders, 1 pc foot switches, 1 set hex wrench, 1 pc collect，1 pc stop nut
Optional Accessories：
Chuck, feeder, chip conveyor, manipulator, power turret optional
System：Syntec 22TB
Spindle：A2-5/KENTURN/POSA
Spindle motor:Huahong 7.5KW
Power turret: sanhe SHDY12BR-300/SHDY16BR-364 hard rail BMT40-15/BMT45-15 station cutter head
Lead Screw：HIWIN//PMI/Japan NSK ( C3 Grade)
Rail Line：HIWIN/Japan NSK (P Grade )
Bearing：Japan NSK
G.W.:3200KG
Power:19KW
 |
 |
 |

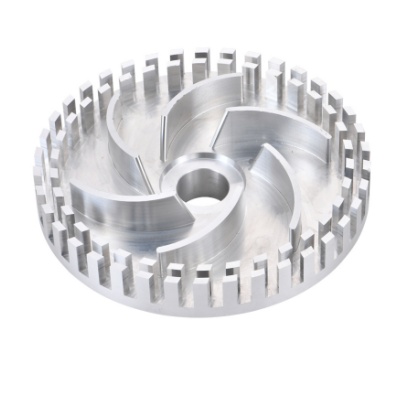

| Product: Impeller Material: Stainless Steel Application: Defense Aviation |
Product: Encoder Box Material: Aluminum Alloy Application: Defense Aviation |
Product: Transmission Shaft Material: 45# Steel Application: Defense Aviation |
 |
 |
 |

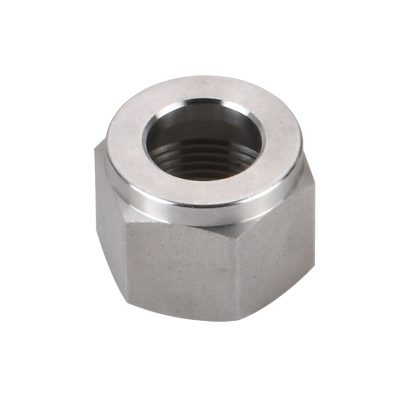

| Product: 6 Corner Lock Nut Material: 304 Stainless Steel Application: Mold Making |

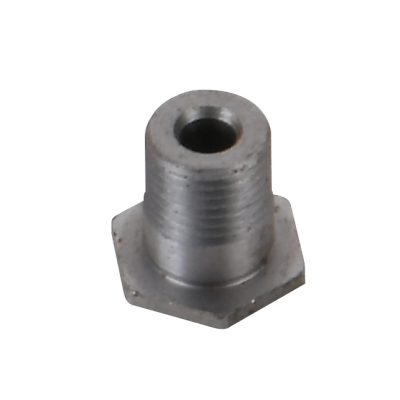

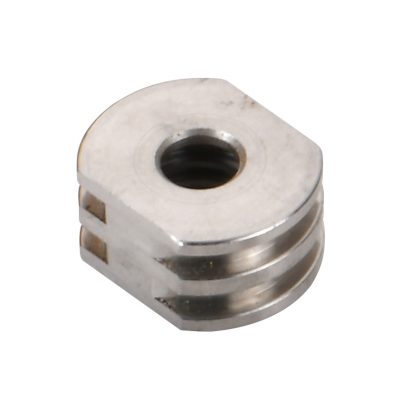

Product: Nut Material: 303 Stainless Steel Application: Electronics Industry |

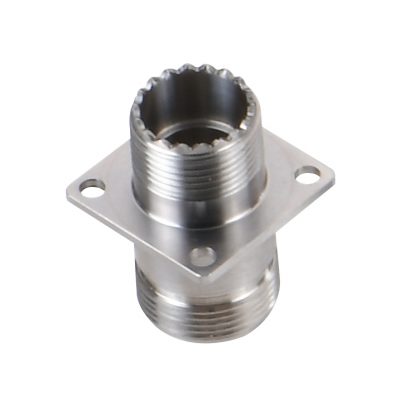

Product: Connector Material: Aluminum Alloy Application: Electronics Industry |
 |
 |
 |

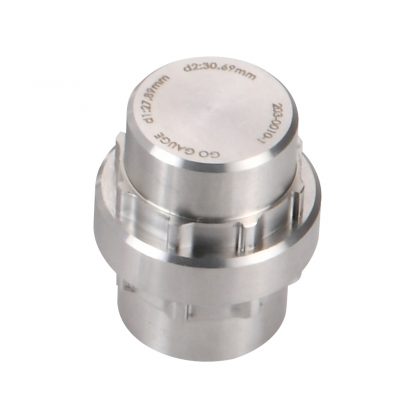

| Product: Quick Connector Material: Aluminum Alloy Application: Defense Aviation Machine: RKS-46DY |

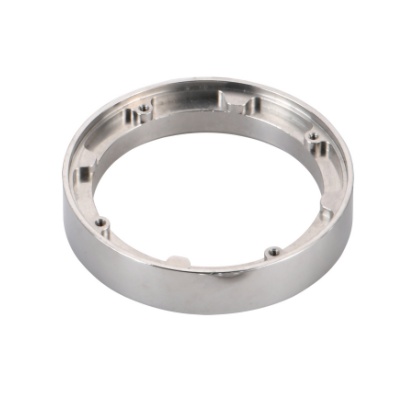

Product: End Cap Material: 303 Stainless Steel Application: Parts Structure |

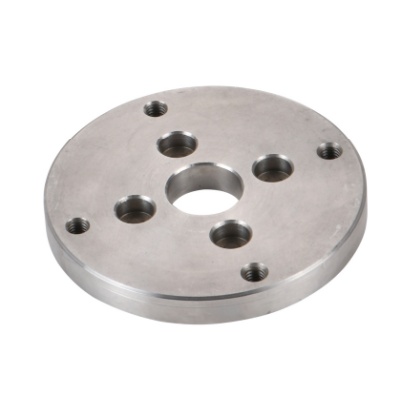

Product: Flange Material: 45 # Steel Application: Parts Structure |
 |
 |
 |

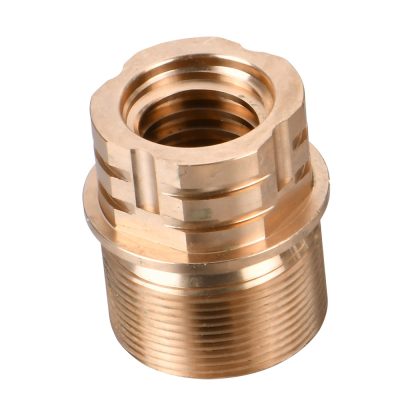

| Product: Sleeve Material: Brass Application: Medical Instrucment |

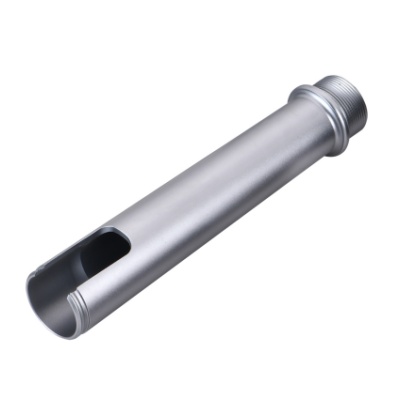

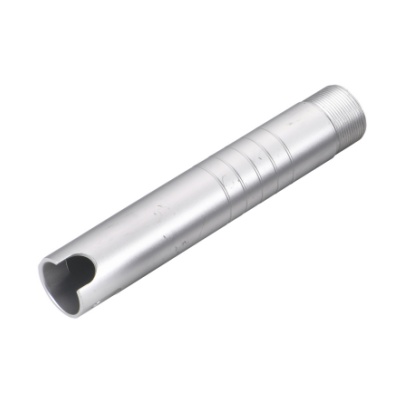

Product: Probe Housing Material: Aluminum Alloy Application: Medical Instrucment |

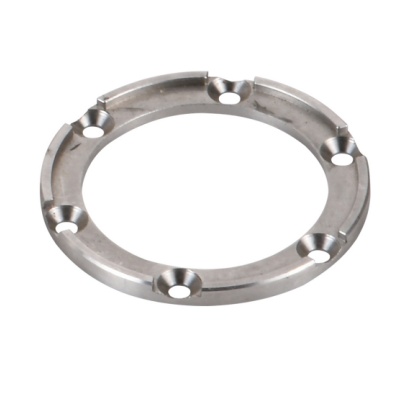

Product: Flange Material: 304 Stainless Steel Application:Intelligent Equipment |
 |
 |
 |

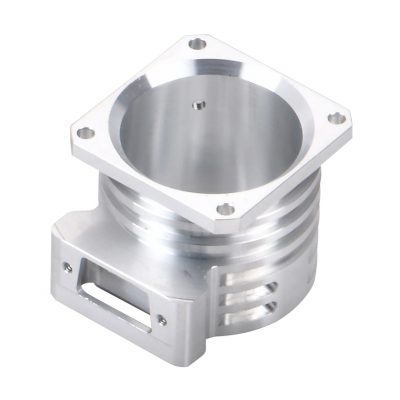

| Product: Reduction Gear Cover Material: Aluminum Alloy Application:Intelligent Equipment |

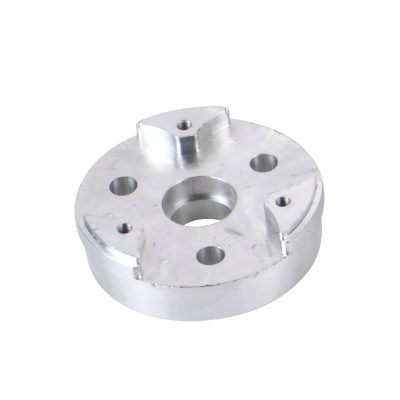

Product: Rotary Adjustment Part Material: Aluminum Alloy Application:Intelligent Equipment |

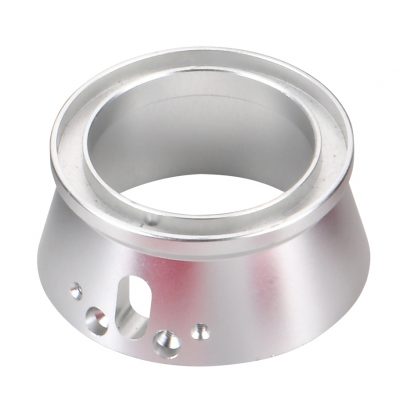

Product: Voice Box Housing Material: Aluminum Alloy Application:Fashion Accessories |
 |
 |
 |
| Product: Cosmetic Instrucment Housing Material: Aluminum Alloy Application:Beauty Device Part |
Product: Motion Handle Material: Aluminum Alloy Application: Sports Instrucment |

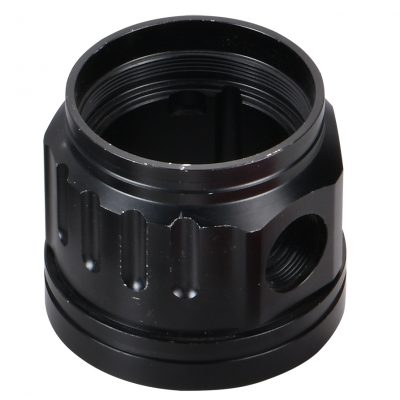

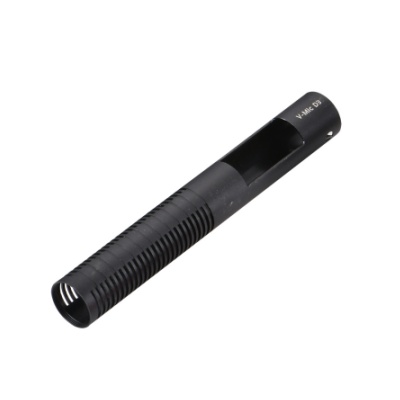

Product: Microphone Housing Material: Aluminum Alloy Application: Microphone Part |
|
