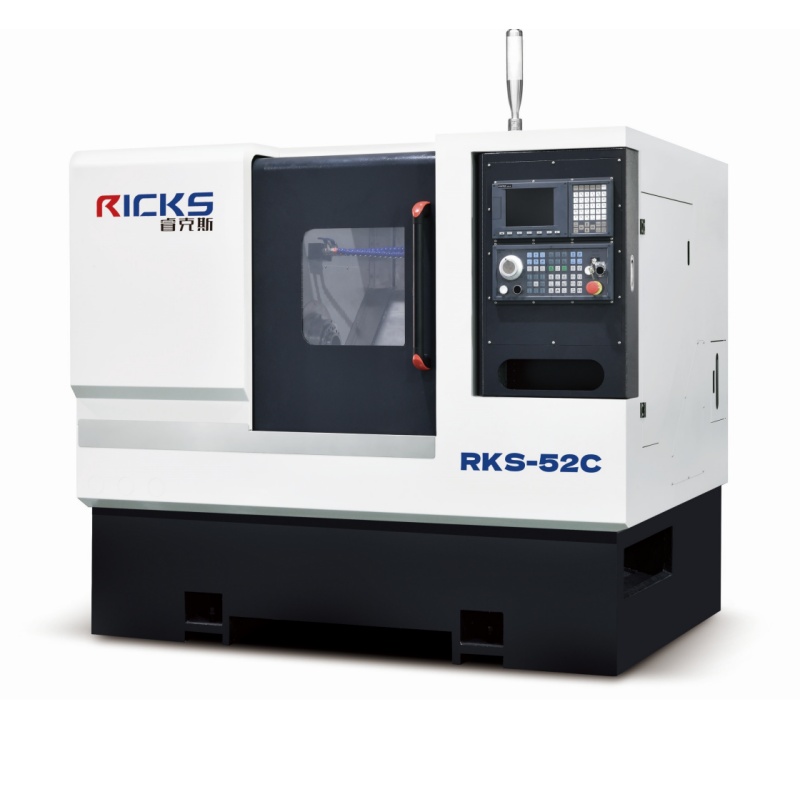

Cutter Lathe With Power Head
APPLICATION
The machine is suitable for processing batch continuous parts within a diameter of 52mm, as well as processing clamping large-diameter single-piece, with high-precision, high-efficiency, and multi-functional requirements and widely used in new energy vehicles, motorcycles and other industries.
Item |
Unit |
RKS-52C |
|
Processing Capacity |
Max rotation diameter of bed |
mm |
Φ480 |
Max turning diameter of slide |
mm |
Φ140 |
|
Max cutting length |
mm |
400 |
|
X axis travel |
mm |
900 |
|
Z axis travel |
mm |
450 |
|
Spindle |
Spindle nose |
|
A2-6 |
Spindle through-hole diameter |
mm |
Φ66 |
|
Max bar diameter |
mm |
Φ52 |
|
Max rotation speed |
r/min |
4500 |
|
Spindle motor power |
kw |
7.5/11 |
|
Spindle drive power |
kw |
7.5/11 |
|
Chuck diameter/size |
inch |
8“ |
|
Feed Axis |
X/Z axis repeat positioning accuracy |
mm |
0.002/0.002 |
X/Z axis positioning accuracy |
mm |
0.003/0.003 |
|
X/Z axis fast-moving speed |
m/min |
24/24 |
|
X/Z axis motor power |
kw |
2.4 |
|
Power Head |
Max. processing length of power head |
mm |
400 |
Max. speed of power head |
r/min |
4000/5000 |
|
Power head motor power |
kw |
1.7/2.3 |
|
Power head drive power |
kw |
1.7/2.3 |
|
Cooling Lubricant System |
Cooling pump motor power |
kw |
0.4/0.75 |
Tank capacity |
L |
70L |
|
Others |
Dimension (L*W*H) |
mm |
2230*1700*1825 |
Total Power |
kva |
17 |
|
Weight |
kg |
3050 |
Standard Accessories:
1 pc user manual, 8 pcs row knife holders, 1 pc foot switches, 1 set hex wrench, 1 pc collect,1 pc stop nut
Optional Accessories:
Chuck, feeder, chip conveyor, manipulator, power head optional
System:Syntec 22TA
Spindle:A2-6/KENTURN/POSA
Spindle motor: CTB 11KW
Power head: Chengsheng SJ-CD2A ER25 single motor two power heads
Lead Screw:HIWIN//PMI/Japan NSK ( C3 Grade)
Rail Line:HIWIN/Japan NSK (P Grade )
Bearing:Japan NSK
G.W.: 3000KG
Power: 15KW
Item |
Unit |
RKS-52C |
|
Processing Capacity |
Max rotation diameter of bed |
mm |
Φ480 |
Max turning diameter of slide |
mm |
Φ140 |
|
Max cutting length |
mm |
400 |
|
X axis travel |
mm |
900 |
|
Z axis travel |
mm |
450 |
|
Spindle |
Spindle nose |
|
A2-6 |
Spindle through-hole diameter |
mm |
Φ66 |
|
Max bar diameter |
mm |
Φ52 |
|
Max rotation speed |
r/min |
4500 |
|
Spindle motor power |
kw |
7.5/11 |
|
Spindle drive power |
kw |
7.5/11 |
|
Chuck diameter/size |
inch |
8“ |
|
Feed Axis |
X/Z axis repeat positioning accuracy |
mm |
0.002/0.002 |
X/Z axis positioning accuracy |
mm |
0.003/0.003 |
|
X/Z axis fast-moving speed |
m/min |
24/24 |
|
X/Z axis motor power |
kw |
2.4 |
|
Power Head |
Max. processing length of power head |
mm |
400 |
Max. speed of power head |
r/min |
4000/5000 |
|
Power head motor power |
kw |
1.7/2.3 |
|
Power head drive power |
kw |
1.7/2.3 |
|
Cooling Lubricant System |
Cooling pump motor power |
kw |
0.4/0.75 |
Tank capacity |
L |
70L |
|
Others |
Dimension (L*W*H) |
mm |
2230*1700*1825 |
Total Power |
kva |
17 |
|
Weight |
kg |
3050 |
Standard Accessories:
1 pc user manual, 8 pcs row knife holders, 1 pc foot switches, 1 set hex wrench, 1 pc collect,1 pc stop nut
Optional Accessories:
Chuck, feeder, chip conveyor, manipulator, power head optional
System:Syntec 22TA
Spindle:A2-6/KENTURN/POSA
Spindle motor: CTB 11KW
Power head: Chengsheng SJ-CD2A ER25 single motor two power heads
Lead Screw:HIWIN//PMI/Japan NSK ( C3 Grade)
Rail Line:HIWIN/Japan NSK (P Grade )
Bearing:Japan NSK
G.W.: 3000KG
Power: 15KW
