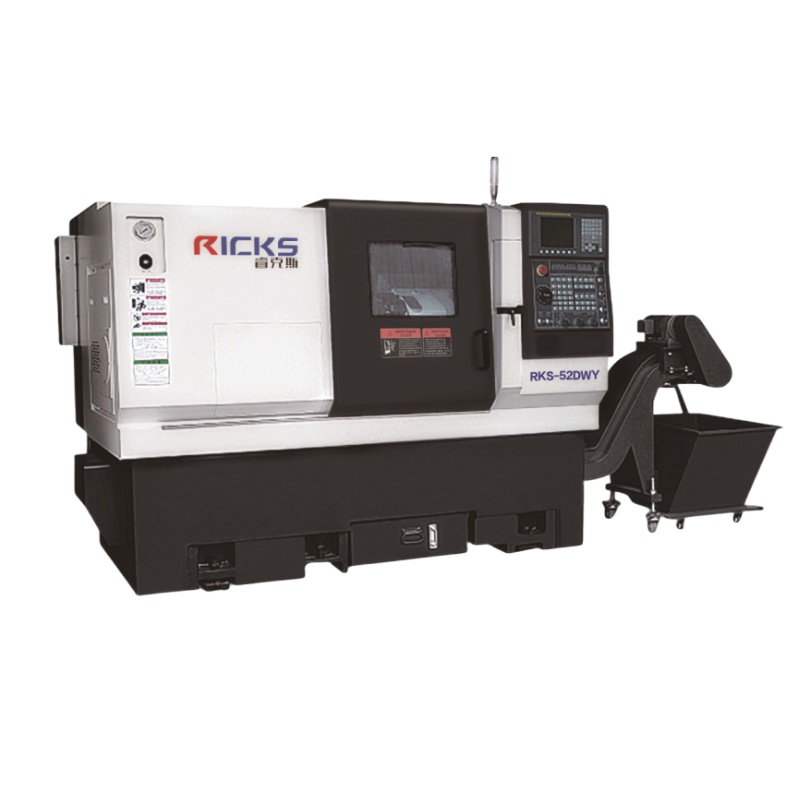

Power Turret Turn-Milling Compound Machine//With Tailstock, Power Turret and Y Axis
APPLICATION
The machine is suitable for processing batch continuous parts within a diameter of 52mm, which requires turning and milling integrated, as well as processing clamping large-diameter single-piece, with high-precision, high-efficiency, and multi-functional requirements, and widely used in new energy vehicles, optical instruments, medical equipment, oil pipelines, special motors, hydraulic and pneumatic engineering and other industries.
|
Item |
Unit |
RKS-52DWY |
|
|
Processing Capacity |
Max rotation diameter |
mm |
Φ500 |
|
Max turning diameter |
mm |
Φ210 |
|
|
Max cutting length |
mm |
380 |
|
|
X axis travel |
mm |
230 |
|
|
Y axis travel |
mm |
100 |
|
|
Z axis travel |
mm |
500 |
|
|
Spindle |
Spindle nose |
|
A2-6 |
|
Spindle through-hole diameter |
mm |
Φ66 |
|
|
Max bar diameter |
mm |
Φ52 |
|
|
Max rotation speed |
r/min |
4500 |
|
|
Spindle motor power |
kw |
11 |
|
|
Spindle drive power |
kw |
11 |
|
|
Chuck diameter/size |
inch |
8” |
|
|
Feed Axis |
X axis positioning accuracy |
mm |
0.005 |
|
Y axis positioning accuracy |
mm |
0.005 |
|
|
Z axis positioning accuracy |
mm |
0.005 |
|
|
X axis repeat positioning accuracy |
mm |
0.002 |
|
|
Y axis repeat positioning accuracy |
mm |
0.002 |
|
|
Z axis repeat positioning accuracy |
mm |
0.002 |
|
|
X/Y/Z axis fast-moving speed |
m/min |
24 |
|
|
X/Y/Z axis motor power |
kw |
2.4 |
|
|
Power Head |
Number of forward milling axes |
pcs |
4 |
|
Number of side milling axes |
pcs |
4 |
|
|
Max. processing length of power head |
mm |
380 |
|
|
Max. speed of power head |
r/min |
4000 |
|
|
Power head motor power |
kw |
2.3 |
|
|
Power head drive power |
kw |
2.3 |
|
|
Power Turret |
Specification |
|
15 station |
|
Tool changing speed |
s |
0.2 |
|
|
Turret motor power |
kw |
1.0 |
|
|
Turret drive power |
kw |
1.0 |
|
|
Hydraulic Tailstock |
Tailstock body travel |
mm |
450 |
|
Tailstock sleeve travel |
mm |
80 |
|
|
Tailstock motor power |
kw |
N/A |
|
|
Tailstock drive power |
kw |
N/A |
|
|
Cooling Lubricant System |
Cooling pump motor power |
kw |
0.75 |
|
Tank capacity |
L |
100 |
|
|
Others |
Dimension （L*W*H） |
mm |
2460*1880*1850 |
|
Total Power |
kva |
24 |
|
|
Weight |
kg |
4200 |
|
Standard Accessories:
1 pc user manual, 4 pcs power turret tool holders, 8 pcs row knife holders, 1 pc foot switches, 1 set hex wrench, 1 pc collect，1 pc stop nut, 1 pc timble
Optional Accessories：
Chuck, feeder, chip conveyor, manipulator, power turret, power head optional
System：Syntec 22TB
Spindle：A2-6/KENTURN/POSA
Spindle motor:Huahong 11KW
Power turret: sanhe SHDY16B1R-364/SHDY16BR-330 hard rail BMT45-15/BMT55-12 station cutter head
Lead Screw：HIWIN//PMI/Japan NSK ( C3 Grade)
Rail Line：HIWIN/Japan NSK (P Grade )
Bearing：Japan NSK
G.W.:5500KG
Power:23KW
 |
 |
 |
|

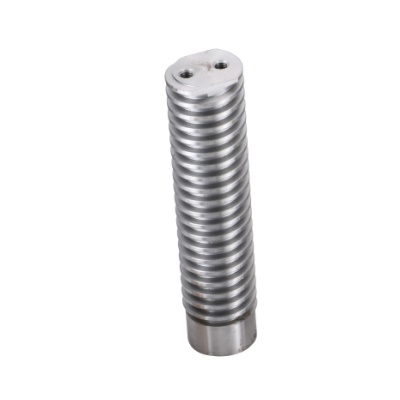

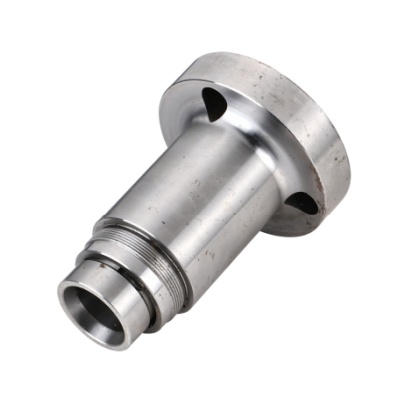

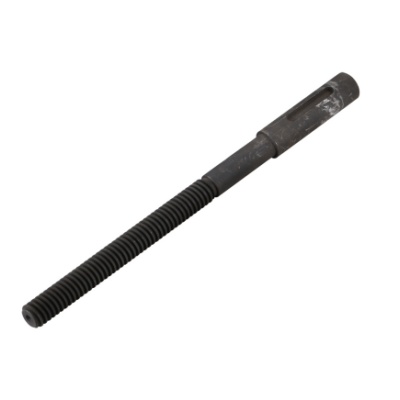

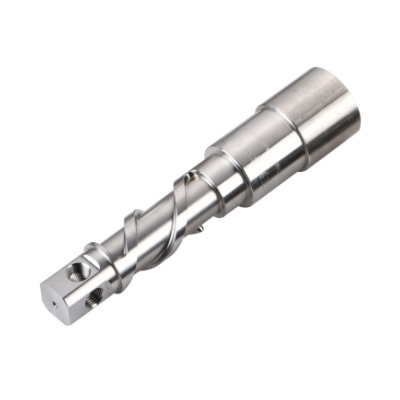

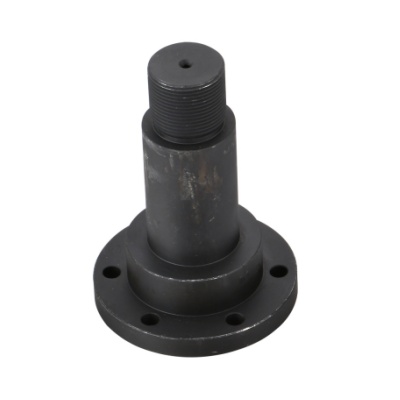

Product: Transmission Shaft |
Product: Fixed Bolts |
Product: Flange |
 |
 |
|
|
Product: Cavity |
Product: Drive Screw |
|
|
Item |
Unit |
RKS-52DWY |
|
|
Processing Capacity |
Max rotation diameter |
mm |
Φ500 |
|
Max turning diameter |
mm |
Φ210 |
|
|
Max cutting length |
mm |
380 |
|
|
X axis travel |
mm |
230 |
|
|
Y axis travel |
mm |
100 |
|
|
Z axis travel |
mm |
500 |
|
|
Spindle |
Spindle nose |
|
A2-6 |
|
Spindle through-hole diameter |
mm |
Φ66 |
|
|
Max bar diameter |
mm |
Φ52 |
|
|
Max rotation speed |
r/min |
4500 |
|
|
Spindle motor power |
kw |
11 |
|
|
Spindle drive power |
kw |
11 |
|
|
Chuck diameter/size |
inch |
8” |
|
|
Feed Axis |
X axis positioning accuracy |
mm |
0.005 |
|
Y axis positioning accuracy |
mm |
0.005 |
|
|
Z axis positioning accuracy |
mm |
0.005 |
|
|
X axis repeat positioning accuracy |
mm |
0.002 |
|
|
Y axis repeat positioning accuracy |
mm |
0.002 |
|
|
Z axis repeat positioning accuracy |
mm |
0.002 |
|
|
X/Y/Z axis fast-moving speed |
m/min |
24 |
|
|
X/Y/Z axis motor power |
kw |
2.4 |
|
|
Power Head |
Number of forward milling axes |
pcs |
4 |
|
Number of side milling axes |
pcs |
4 |
|
|
Max. processing length of power head |
mm |
380 |
|
|
Max. speed of power head |
r/min |
4000 |
|
|
Power head motor power |
kw |
2.3 |
|
|
Power head drive power |
kw |
2.3 |
|
|
Power Turret |
Specification |
|
15 station |
|
Tool changing speed |
s |
0.2 |
|
|
Turret motor power |
kw |
1.0 |
|
|
Turret drive power |
kw |
1.0 |
|
|
Hydraulic Tailstock |
Tailstock body travel |
mm |
450 |
|
Tailstock sleeve travel |
mm |
80 |
|
|
Tailstock motor power |
kw |
N/A |
|
|
Tailstock drive power |
kw |
N/A |
|
|
Cooling Lubricant System |
Cooling pump motor power |
kw |
0.75 |
|
Tank capacity |
L |
100 |
|
|
Others |
Dimension （L*W*H） |
mm |
2460*1880*1850 |
|
Total Power |
kva |
24 |
|
|
Weight |
kg |
4200 |
|
Standard Accessories:
1 pc user manual, 4 pcs power turret tool holders, 8 pcs row knife holders, 1 pc foot switches, 1 set hex wrench, 1 pc collect，1 pc stop nut, 1 pc timble
Optional Accessories：
Chuck, feeder, chip conveyor, manipulator, power turret, power head optional
System：Syntec 22TB
Spindle：A2-6/KENTURN/POSA
Spindle motor:Huahong 11KW
Power turret: sanhe SHDY16B1R-364/SHDY16BR-330 hard rail BMT45-15/BMT55-12 station cutter head
Lead Screw：HIWIN//PMI/Japan NSK ( C3 Grade)
Rail Line：HIWIN/Japan NSK (P Grade )
Bearing：Japan NSK
G.W.:5500KG
Power:23KW
|
|
|
|
Product: Transmission Shaft |
Product: Fixed Bolts |
Product: Flange |
|
|
|
|
Product: Cavity |
Product: Drive Screw |
|
