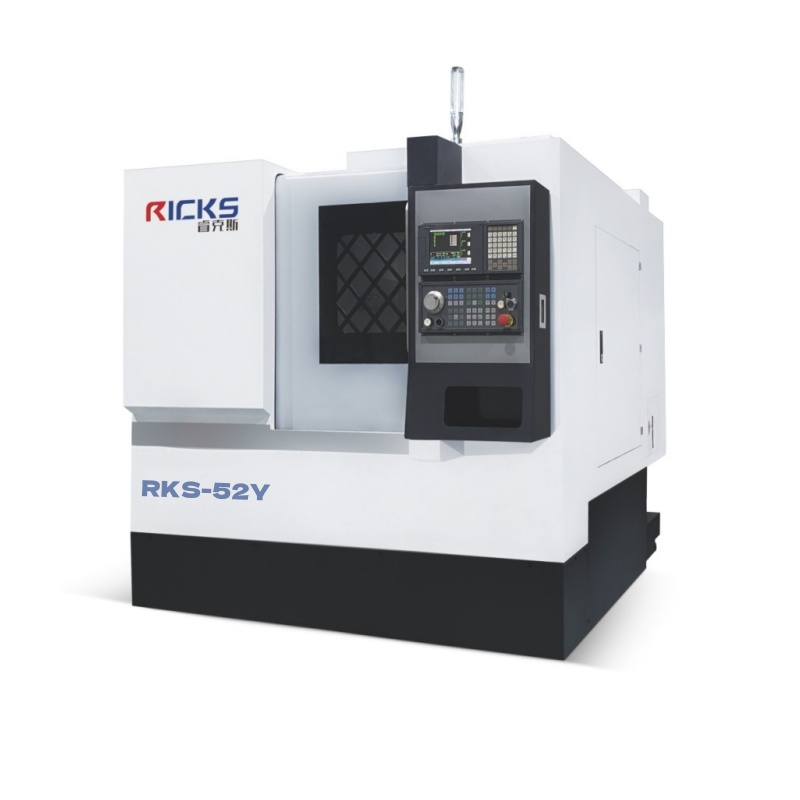

Turn-Milling Compound Machine//With Y Axis
APPLICATION
The machine is suitable for processing batch continuous parts within a diameter of 52mm, which requires turning and milling integrated, as well as processing clamping large-diameter single-piece, with high-precision, high-efficiency, and multi-functional requirements, and widely used in new energy vehicles, motorcycles, optical instruments, medical equipment, hydraulic and pneumatic engineering and other industries.
|
Item |
Unit |
RKS-52Y |
|
|
Processing Capacity |
Max rotation diameter |
mm |
Φ500 |
|
Max turning diameter |
mm |
Φ140 |
|
|
Max cutting length |
mm |
400 |
|
|
X axis travel |
mm |
900 |
|
|
Y axis travel |
mm |
230 |
|
|
Z axis travel |
mm |
450 |
|
|
Spindle |
Spindle nose |
|
A2-6 |
|
Spindle through-hole diameter |
mm |
Φ66 |
|
|
Max bar diameter |
mm |
Φ52 |
|
|
Max rotation speed |
r/min |
4500 |
|
|
Spindle motor power |
kw |
7.5/11 |
|
|
Spindle drive power |
kw |
7.5/11 |
|
|
Chuck diameter/size |
inch |
8” |
|
|
Feed Axis |
X axis positioning accuracy |
mm |
0.005 |
|
Y axis positioning accuracy |
mm |
0.005 |
|
|
Z axis positioning accuracy |
mm |
0.005 |
|
|
X axis repeat positioning accuracy |
mm |
0.002 |
|
|
Y axis repeat positioning accuracy |
mm |
0.002 |
|
|
Z axis repeat positioning accuracy |
mm |
0.002 |
|
|
X/Z/Y axis fast-moving speed |
m/min |
30/30/18 |
|
|
X/Z/Y axis motor power |
kw |
2.4 |
|
|
Power Head |
Number of forward milling axes |
pcs |
4 |
|
Number of side milling axes |
pcs |
4 |
|
|
Max. processing length of power head |
mm |
400 |
|
|
Max. speed of power head |
r/min |
4000 |
|
|
Power head motor power |
kw |
2.3 |
|
|
Power head drive power |
kw |
2.3 |
|
|
Turret |
Specification |
|
12 station |
|
Tool changing speed |
s |
0.2 |
|
|
Turret motor power |
kw |
1.0 |
|
|
Turret drive power |
kw |
1.0 |
|
|
Cooling Lubricant System |
Cooling pump motor power |
kw |
0.75 |
|
Tank capacity |
L |
70L |
|
|
Others |
Dimension （L*W*H） |
mm |
2050*1935*2110 |
|
Total Power |
kva |
19 |
|
|
Weight |
kg |
3500 |
|
Standard Accessories:
1 pc user manual, 5 pcs turret tool holders, 1 pc foot switches, 1 set hex wrench, 1 pc collect，1 pc stop nut
Optional Accessories：
Chuck, feeder, chip conveyor, manipulator, power head, turret optional
System：Syntec 22TB
Spindle：A2-6/KENTURN/POSA
Spindle motor: Huahong 7.5KW
Turret: Taiwan Taijia turret/Sanhe turret(63-12 stations )
Power head: Ling’s twin motors 4+4-Y axis ER25-60 1.3KW/Y axis 1.8/ center height 90
Lead Screw：HIWIN//PMI/Japan NSK ( C3 Grade)
Rail Line：HIWIN/Japan NSK (P Grade )
Bearing：Japan NSK
G.W.: 3500KG
Power: 19KW
|
Item |
Unit |
RKS-52Y |
|
|
Processing Capacity |
Max rotation diameter |
mm |
Φ500 |
|
Max turning diameter |
mm |
Φ140 |
|
|
Max cutting length |
mm |
400 |
|
|
X axis travel |
mm |
900 |
|
|
Y axis travel |
mm |
230 |
|
|
Z axis travel |
mm |
450 |
|
|
Spindle |
Spindle nose |
|
A2-6 |
|
Spindle through-hole diameter |
mm |
Φ66 |
|
|
Max bar diameter |
mm |
Φ52 |
|
|
Max rotation speed |
r/min |
4500 |
|
|
Spindle motor power |
kw |
7.5/11 |
|
|
Spindle drive power |
kw |
7.5/11 |
|
|
Chuck diameter/size |
inch |
8” |
|
|
Feed Axis |
X axis positioning accuracy |
mm |
0.005 |
|
Y axis positioning accuracy |
mm |
0.005 |
|
|
Z axis positioning accuracy |
mm |
0.005 |
|
|
X axis repeat positioning accuracy |
mm |
0.002 |
|
|
Y axis repeat positioning accuracy |
mm |
0.002 |
|
|
Z axis repeat positioning accuracy |
mm |
0.002 |
|
|
X/Z/Y axis fast-moving speed |
m/min |
30/30/18 |
|
|
X/Z/Y axis motor power |
kw |
2.4 |
|
|
Power Head |
Number of forward milling axes |
pcs |
4 |
|
Number of side milling axes |
pcs |
4 |
|
|
Max. processing length of power head |
mm |
400 |
|
|
Max. speed of power head |
r/min |
4000 |
|
|
Power head motor power |
kw |
2.3 |
|
|
Power head drive power |
kw |
2.3 |
|
|
Turret |
Specification |
|
12 station |
|
Tool changing speed |
s |
0.2 |
|
|
Turret motor power |
kw |
1.0 |
|
|
Turret drive power |
kw |
1.0 |
|
|
Cooling Lubricant System |
Cooling pump motor power |
kw |
0.75 |
|
Tank capacity |
L |
70L |
|
|
Others |
Dimension （L*W*H） |
mm |
2050*1935*2110 |
|
Total Power |
kva |
19 |
|
|
Weight |
kg |
3500 |
|
Standard Accessories:
1 pc user manual, 5 pcs turret tool holders, 1 pc foot switches, 1 set hex wrench, 1 pc collect，1 pc stop nut
Optional Accessories：
Chuck, feeder, chip conveyor, manipulator, power head, turret optional
System：Syntec 22TB
Spindle：A2-6/KENTURN/POSA
Spindle motor: Huahong 7.5KW
Turret: Taiwan Taijia turret/Sanhe turret(63-12 stations )
Power head: Ling’s twin motors 4+4-Y axis ER25-60 1.3KW/Y axis 1.8/ center height 90
Lead Screw：HIWIN//PMI/Japan NSK ( C3 Grade)
Rail Line：HIWIN/Japan NSK (P Grade )
Bearing：Japan NSK
G.W.: 3500KG
Power: 19KW
