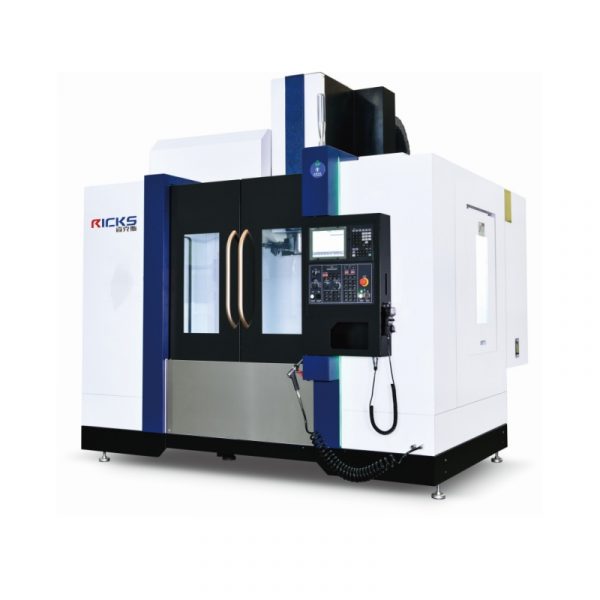

High-speed and High-precision Machine Center//High-speed Cutting, Fast Feed, the Best Tool to Creat Efficient Profits
APPLICATION
It is suitable for small and medium-sized batch processing of various types of complex parts such as small and medium-sized boxes, plates, valves, shells, molds, etc. and widely used in precision parts, 5G products, hardware, auto parts, and medical equipment industries.
|
Item |
Unit |
RKS-850 |
|
|
Travel |
X axis travel |
mm |
800 |
|
Y axis travel |
mm |
500 |
|
|
Z axis travel |
mm |
500 |
|
|
Distance from spindle end face to milling table |
mm |
105-605 |
|
|
Distance from spindle center to column |
mm |
N/A |
|
|
Milling Table |
Table size |
mm |
1000×500 |
|
T-slot size/amount /distance |
mm/pcs/mm |
18×5×100 |
|
|
Max load on table |
kg |
500 |
|
|
Spindle |
Spindle taper |
|
BT40 |
|
Max spindle rotation speed |
rpm |
10000/12000 |
|
|
Spindle power |
kw |
7.5 |
|
|
Tool Changer |
Tool type |
Type |
Knife arm type |
|
Tool quantity |
pcs |
24 |
|
|
Max. tool diameter |
mm |
Φ78 |
|
|
Max. tool diameter (tools slots beside not occupied) |
mm |
Φ120 |
|
|
Max. tool length |
mm |
300 |
|
|
Max. tool weight |
kg |
8 |
|
|
Tool changing time |
s |
1.7 |
|
|
Speed |
Fast moving speed (X/Y/Z) |
m/min |
48/48/48 |
|
Cutting speed (X/Y/Z) |
m/min |
10/10/10 |
|
|
Accuracy |
Positioning accuracy (X/Y/Z) |
mm |
0.008 |
|
Repeat position accuracy (X/Y/Z） |
mm |
0.005 |
|
|
Others |
Air source |
L/min |
280L/min |
|
Air pressure |
bar |
6~8bar |
|
|
Total power |
kva |
25 |
|
|
Dimension（L*W*H） |
mm |
2700×2400×2500 |
|
|
Weight |
kg |
5200 |
|
Standard Accessories:
1 set vise and horse iron, 4 sets tool handle and rivets, 1 pc knife lock holder, 1 set mouth&airsoft&memory card, 1 set hexagon socket
System：Syntec 22MA
Spindle：Taiwan De Jiu/Jian Chun BT40-12000 RPM
Tool magazine: Taiwan Square Crown/Desu 24T
spindle motor: Taiwan new generation M11-12B4
Lead Screw：Taiwan HIWIN/PMI 3216-C3 grade
Rail Line：Taiwan HIWIN/PMI P35#ball
Bearing：Japan SKF/KOYO/FAG P4
G.W: 5200KG
Power: 25KW
System：Mitsubishi M80B/ SIEMENS 828D
Spindle：Taiwan De Jiu/Jian Chun BT40-12000 RPM
Tool magazine: Taiwan Square Crown/Desu 24T
spindle motor: Mitsubishi Japan 7.5KW/ Germany Siemens DL4.8/12000
Lead Screw：Taiwan HIWIN/PMI 3216-C3 grade
Rail Line：Taiwan HIWIN/PMI P35#ball
Bearing：Japan SKF/KOYO/FAG P4
G.W: 5200KG
Power: 25KW
System：Japan FANUC 0i-MF (5)
Spindle：Taiwan De Jiu/Jian Chun BT40-12000 RPM
Tool magazine: Taiwan Square Crown/Desu 24T
spindle motor: Japanese Fanuc aiI8/12000rpm
Lead Screw：Taiwan HIWIN/PMI 3216-C3 grade
Rail Line：Taiwan HIWIN/PMI P35#ball
Bearing：Japan SKF/KOYO/FAG P4
G.W: 5200KG
Power: 25KW
 |
 |
 |
|

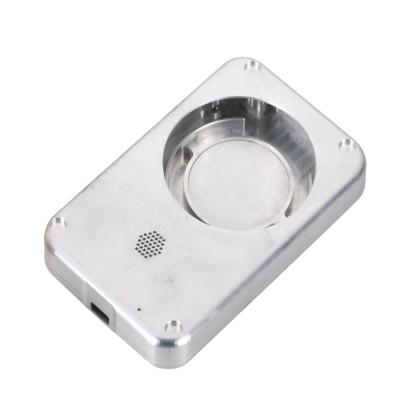

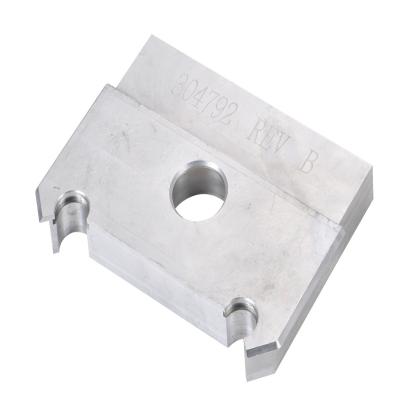

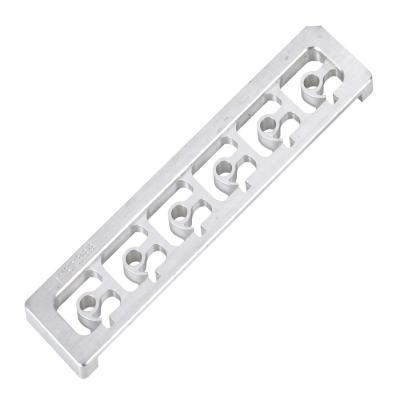

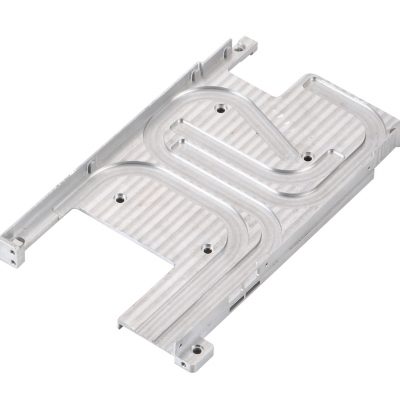

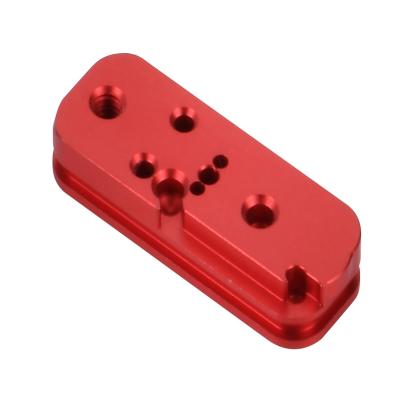

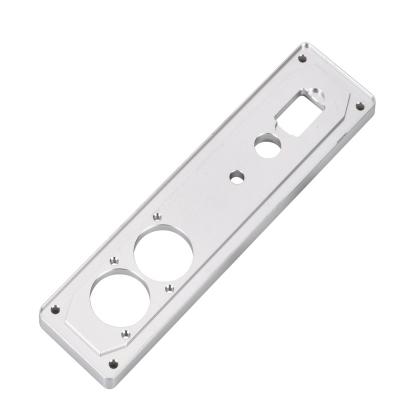

Product: Bottom Case |
Product: Middle Bezel |
Product: Mounting Plate |
 |
 |
 |
|
Product: Receiver Box |
Product: Right Angle Plate |
Product: Holder |
 |
 |
 |
|
Product: Holder |
Product: Supporting Seat |
Product: Connecting Board |
 |
 |
 |
|
Product: Receiving Box |
Product: Phone Base Cover |
Product: Phone Base Cover |
 |
 |
 |
|
Product: Operation Case |
Product: |
Product: Multifunctional Bracket |
|
Item |
Unit |
RKS-850 |
|
|
Travel |
X axis travel |
mm |
800 |
|
Y axis travel |
mm |
500 |
|
|
Z axis travel |
mm |
500 |
|
|
Distance from spindle end face to milling table |
mm |
105-605 |
|
|
Distance from spindle center to column |
mm |
N/A |
|
|
Milling Table |
Table size |
mm |
1000×500 |
|
T-slot size/amount /distance |
mm/pcs/mm |
18×5×100 |
|
|
Max load on table |
kg |
500 |
|
|
Spindle |
Spindle taper |
|
BT40 |
|
Max spindle rotation speed |
rpm |
10000/12000 |
|
|
Spindle power |
kw |
7.5 |
|
|
Tool Changer |
Tool type |
Type |
Knife arm type |
|
Tool quantity |
pcs |
24 |
|
|
Max. tool diameter |
mm |
Φ78 |
|
|
Max. tool diameter (tools slots beside not occupied) |
mm |
Φ120 |
|
|
Max. tool length |
mm |
300 |
|
|
Max. tool weight |
kg |
8 |
|
|
Tool changing time |
s |
1.7 |
|
|
Speed |
Fast moving speed (X/Y/Z) |
m/min |
48/48/48 |
|
Cutting speed (X/Y/Z) |
m/min |
10/10/10 |
|
|
Accuracy |
Positioning accuracy (X/Y/Z) |
mm |
0.008 |
|
Repeat position accuracy (X/Y/Z） |
mm |
0.005 |
|
|
Others |
Air source |
L/min |
280L/min |
|
Air pressure |
bar |
6~8bar |
|
|
Total power |
kva |
25 |
|
|
Dimension（L*W*H） |
mm |
2700×2400×2500 |
|
|
Weight |
kg |
5200 |
|
Standard Accessories:
1 set vise and horse iron, 4 sets tool handle and rivets, 1 pc knife lock holder, 1 set mouth&airsoft&memory card, 1 set hexagon socket
System：Syntec 22MA
Spindle：Taiwan De Jiu/Jian Chun BT40-12000 RPM
Tool magazine: Taiwan Square Crown/Desu 24T
spindle motor: Taiwan new generation M11-12B4
Lead Screw：Taiwan HIWIN/PMI 3216-C3 grade
Rail Line：Taiwan HIWIN/PMI P35#ball
Bearing：Japan SKF/KOYO/FAG P4
G.W: 5200KG
Power: 25KW
System：Mitsubishi M80B/ SIEMENS 828D
Spindle：Taiwan De Jiu/Jian Chun BT40-12000 RPM
Tool magazine: Taiwan Square Crown/Desu 24T
spindle motor: Mitsubishi Japan 7.5KW/ Germany Siemens DL4.8/12000
Lead Screw：Taiwan HIWIN/PMI 3216-C3 grade
Rail Line：Taiwan HIWIN/PMI P35#ball
Bearing：Japan SKF/KOYO/FAG P4
G.W: 5200KG
Power: 25KW
System：Japan FANUC 0i-MF (5)
Spindle：Taiwan De Jiu/Jian Chun BT40-12000 RPM
Tool magazine: Taiwan Square Crown/Desu 24T
spindle motor: Japanese Fanuc aiI8/12000rpm
Lead Screw：Taiwan HIWIN/PMI 3216-C3 grade
Rail Line：Taiwan HIWIN/PMI P35#ball
Bearing：Japan SKF/KOYO/FAG P4
G.W: 5200KG
Power: 25KW
|
|
|
|
Product: Bottom Case |
Product: Middle Bezel |
Product: Mounting Plate |
|
|
|
|
Product: Receiver Box |
Product: Right Angle Plate |
Product: Holder |
|
|
|
|
Product: Holder |
Product: Supporting Seat |
Product: Connecting Board |
|
|
|
|
Product: Receiving Box |
Product: Phone Base Cover |
Product: Phone Base Cover |
|
|
|
|
Product: Operation Case |
Product: |
Product: Multifunctional Bracket |
