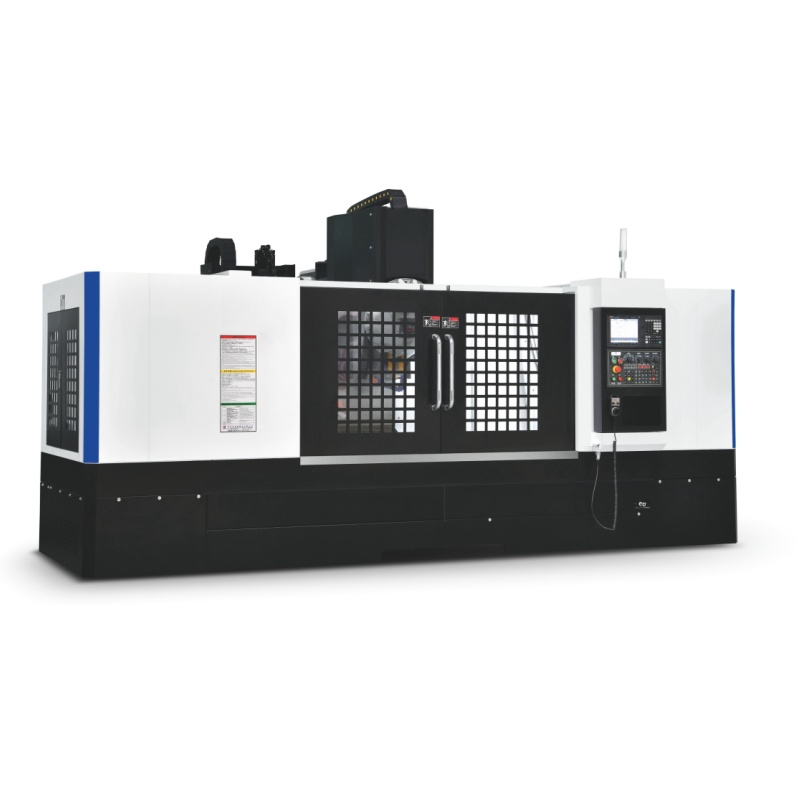

High Speed Profile Machining Center//Wonderful Machine for Producing Long Profile
APPLICATION
It mainly processes internal profiles of rail transit locomotive, narrow and long automobile parts, TV frames, refrigerator frames, communication equipment casings, aluminum alloy profiles, aluminum-wood composite profiles, copper profiles, PVC profiles, etc. in the smart home appliance industry.
|
Item |
Unit |
RKS-T1800 |
|
|
Travel |
X axis travel |
mm |
1850 |
|
Y axis travel |
mm |
520 |
|
|
Z axis travel |
mm |
450 |
|
|
Distance from spindle end face to milling table |
mm |
130-450 |
|
|
Distance from spindle center to column |
mm |
550 |
|
|
Milling Table |
Table size |
mm |
1900×500 |
|
T-slot size/amount /distance |
mm/pcs/mm |
14×5×100 |
|
|
Max load on table |
kg |
500 |
|
|
Spindle |
Spindle taper |
|
BT30 |
|
Max spindle rotation speed |
rpm |
20000 |
|
|
Tool Changer |
Tool type |
Type |
Clamp type |
|
Tool quantity |
pcs |
21 |
|
|
Max. tool diameter |
mm |
16/21 |
|
|
Max. tool diameter (tools slots beside not occupied) |
mm |
Φ60-100 |
|
|
Max. tool length |
mm |
Φ80-140 |
|
|
Max. tool weight |
kg |
200-250 |
|
|
Tool changing time |
s |
1.2 |
|
|
Speed |
Fast moving speed (X/Y/Z) |
m/min |
48/48/48 |
|
Cutting speed (X/Y/Z) |
m/min |
10/10/10 |
|
|
Accuracy |
Positioning accuracy (X/Y/Z) |
mm |
0.008 |
|
Repeat position accuracy (X/Y/Z） |
mm |
0.005 |
|
|
Others |
Air source |
L/min |
280L/min |
|
Air pressure |
bar |
6~8bar |
|
|
Dimension（L*W*H） |
mm |
4200×2200×2500 |
|
|
Weight |
kg |
5300 |
|
Standard Accessories:
1 set vise and horse iron, 4 sets tool handle and rivets, 1 pc knife lock holder, 1 set mouth&airsoft&water gun, 1 set hexagon socket
System：Syntec 22MA
Spindle：Haozhi/De Jiu 20000 RPM
Tool magazine: Taiwan Yitai/Dechert 21T
spindle motor: Syntec 5.5KW
Lead Screw：Taiwan HIWIN/PMI 3216-C3 grade
Rail Line：Taiwan HIWIN/PMI/IKO Taiwan/Japan XY/30# Ball Z/35 ball
Bearing：Japan NSK P4
G.W:4000KG
Power:10KW
System：Mitsubishi M80B/ SIEMENS 828D
Spindle：Haozhi/De Jiu 20000 RPM
Tool magazine:Taiwan Yitai/Dechert 21T
spindle motor: Mitsubishi Japan 5.5KW/ Germany Siemens DL4.8/200
Lead Screw：Taiwan HIWIN/PMI 3216-C3 grade
Rail Line：Taiwan HIWIN/PMI/IKO Taiwan/Japan XY/30# Ball Z/35 ball
Bearing：Japan NSK P4
G.W:4000KG
Power:10KW
System：Japan FANUC 0i-MF (5)
Spindle：Haozhi/De Jiu 20000 RPM
Tool magazine:Taiwan Yitai/Dechert 21T
spindle motor: Japan Fanuc aiI8/2000
Lead Screw：Taiwan HIWIN/PMI 3216-C3 grade
Rail Line：Taiwan HIWIN/PMI/ WOW P35*2#ball
Bearing：Japan NSK P4
G.W:4000KG
Power:25KW
|
Item |
Unit |
RKS-T1800 |
|
|
Travel |
X axis travel |
mm |
1850 |
|
Y axis travel |
mm |
520 |
|
|
Z axis travel |
mm |
450 |
|
|
Distance from spindle end face to milling table |
mm |
130-450 |
|
|
Distance from spindle center to column |
mm |
550 |
|
|
Milling Table |
Table size |
mm |
1900×500 |
|
T-slot size/amount /distance |
mm/pcs/mm |
14×5×100 |
|
|
Max load on table |
kg |
500 |
|
|
Spindle |
Spindle taper |
|
BT30 |
|
Max spindle rotation speed |
rpm |
20000 |
|
|
Tool Changer |
Tool type |
Type |
Clamp type |
|
Tool quantity |
pcs |
21 |
|
|
Max. tool diameter |
mm |
16/21 |
|
|
Max. tool diameter (tools slots beside not occupied) |
mm |
Φ60-100 |
|
|
Max. tool length |
mm |
Φ80-140 |
|
|
Max. tool weight |
kg |
200-250 |
|
|
Tool changing time |
s |
1.2 |
|
|
Speed |
Fast moving speed (X/Y/Z) |
m/min |
48/48/48 |
|
Cutting speed (X/Y/Z) |
m/min |
10/10/10 |
|
|
Accuracy |
Positioning accuracy (X/Y/Z) |
mm |
0.008 |
|
Repeat position accuracy (X/Y/Z） |
mm |
0.005 |
|
|
Others |
Air source |
L/min |
280L/min |
|
Air pressure |
bar |
6~8bar |
|
|
Dimension（L*W*H） |
mm |
4200×2200×2500 |
|
|
Weight |
kg |
5300 |
|
Standard Accessories:
1 set vise and horse iron, 4 sets tool handle and rivets, 1 pc knife lock holder, 1 set mouth&airsoft&water gun, 1 set hexagon socket
System：Syntec 22MA
Spindle：Haozhi/De Jiu 20000 RPM
Tool magazine: Taiwan Yitai/Dechert 21T
spindle motor: Syntec 5.5KW
Lead Screw：Taiwan HIWIN/PMI 3216-C3 grade
Rail Line：Taiwan HIWIN/PMI/IKO Taiwan/Japan XY/30# Ball Z/35 ball
Bearing：Japan NSK P4
G.W:4000KG
Power:10KW
System：Mitsubishi M80B/ SIEMENS 828D
Spindle：Haozhi/De Jiu 20000 RPM
Tool magazine:Taiwan Yitai/Dechert 21T
spindle motor: Mitsubishi Japan 5.5KW/ Germany Siemens DL4.8/200
Lead Screw：Taiwan HIWIN/PMI 3216-C3 grade
Rail Line：Taiwan HIWIN/PMI/IKO Taiwan/Japan XY/30# Ball Z/35 ball
Bearing：Japan NSK P4
G.W:4000KG
Power:10KW
System：Japan FANUC 0i-MF (5)
Spindle：Haozhi/De Jiu 20000 RPM
Tool magazine:Taiwan Yitai/Dechert 21T
spindle motor: Japan Fanuc aiI8/2000
Lead Screw：Taiwan HIWIN/PMI 3216-C3 grade
Rail Line：Taiwan HIWIN/PMI/ WOW P35*2#ball
Bearing：Japan NSK P4
G.W:4000KG
Power:25KW
