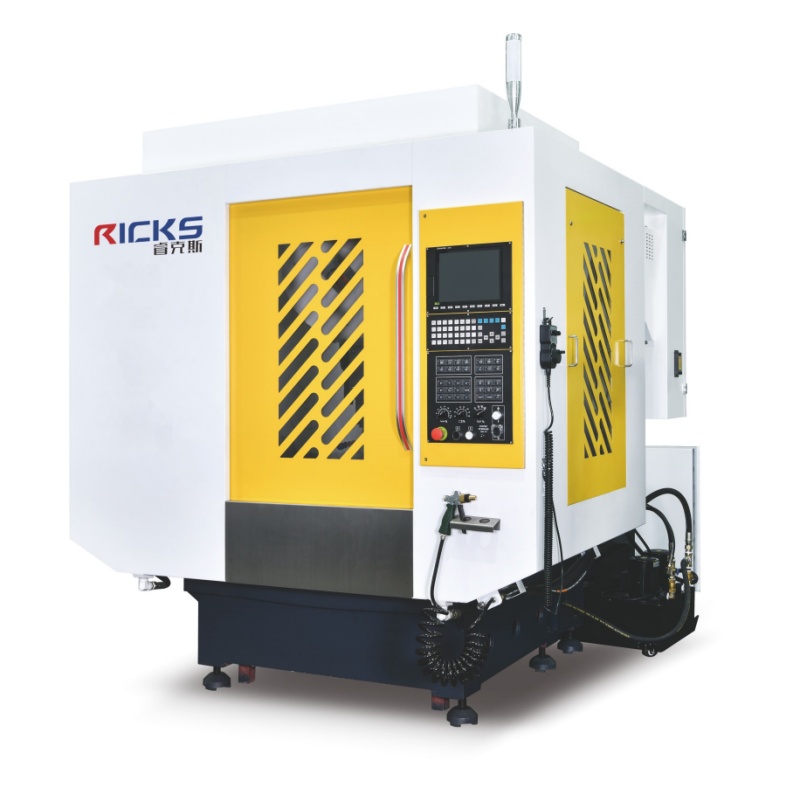

RKS-T600

High-speed Drilling And Tapping Center Series

The super large column and super large solid six-point support structure span base, stable, no deformation, no shocking;
High-function AC spindle servo motor and humanized conversational interface for easy operation.
The direct connection between the motor and the spindle, less backlash, torque transmission more stable, nice processed surface, higher efficiency of high-rigidity tapping while avoiding temperature rise and noise;
The high-speed spindle motor directly drives the spindle to achieve high-speed and high-precision processing, low inertia spindle design, high stability;
The clamp arm tool changer, tools changing quickly and accurately, with a tool change time of 1.4 seconds, suitable for drilling holes with smaller diameters;
A large inclined chip removal angle, quickly cleans the chips and faster return speed of the cutting fluid;
Powerful electromechanical integration application technology, sensitive response speed of the transmission chain, eliminates inaction and non-cutting time during processing to improve production efficiency.

APPLICATION

It is mainly used for processing small parts in general industry, auto parts, medical equipment and other industries.

SPECIFICATION

CONFIGURATION

SAMPLES

SPECIFICATION

CONFIGURATION

SAMPLES

SPECIFICATION

CONFIGURATION

SAMPLES

SPECIFICATION

CONFIGURATION

SAMPLES

Item		Unit	RKS-T600
Travel	X axis travel	mm	600
	Y axis travel	mm	400
	Z axis travel	mm	360
	Distance from spindle end face to milling table	mm	150-510
	Distance from spindle center to column	mm	523
Milling Table	Table size	mm	700×420
	T-slot size/amount /distance	mm/pcs/mm	14×2×100
	Max load on table	kg	350
Spindle	Spindle taper		BT30
Spindle	Max rotation speed	rpm	20000
Tool Changer	Tool type	Type	Clamp type
	Tool quantity	pcs	21
	Max. tool diameter	mm	16/21
	Max. tool diameter (tools slots beside not occupied)	mm	Φ60-100
	Max. tool length	mm	Φ80-140
	Max. tool weight	mm	200-250
	Tool change time T-T	s	1.2
Speed	Fast moving speed (X/Y/Z)	m/min	48/48/48
Speed	Cutting speed (X/Y/Z)	m/min	10/10/10
Accuracy	Positioning accuracy (X/Y/Z)	mm	0.008
Accuracy	Repeat position accuracy (X/Y/Z）	mm	0.005
Others	Air source	L/min	280L/min
	Air pressure	bar	6~8bar
	Total power	kva	10
	Weight	kg	3500

Item		Unit	RKS-T600
Travel	X axis travel	mm	600
	Y axis travel	mm	400
	Z axis travel	mm	360
	Distance from spindle end face to milling table	mm	150-510
	Distance from spindle center to column	mm	523
Milling Table	Table size	mm	700×420
	T-slot size/amount /distance	mm/pcs/mm	14×2×100
	Max load on table	kg	350
Spindle	Spindle taper		BT30
Spindle	Max rotation speed	rpm	20000
Tool Changer	Tool type	Type	Clamp type
	Tool quantity	pcs	21
	Max. tool diameter	mm	16/21
	Max. tool diameter (tools slots beside not occupied)	mm	Φ60-100
	Max. tool length	mm	Φ80-140
	Max. tool weight	mm	200-250
	Tool change time T-T	s	1.2
Speed	Fast moving speed (X/Y/Z)	m/min	48/48/48
Speed	Cutting speed (X/Y/Z)	m/min	10/10/10
Accuracy	Positioning accuracy (X/Y/Z)	mm	0.008
Accuracy	Repeat position accuracy (X/Y/Z）	mm	0.005
Others	Air source	L/min	280L/min
	Air pressure	bar	6~8bar
	Total power	kva	10
	Weight	kg	3500

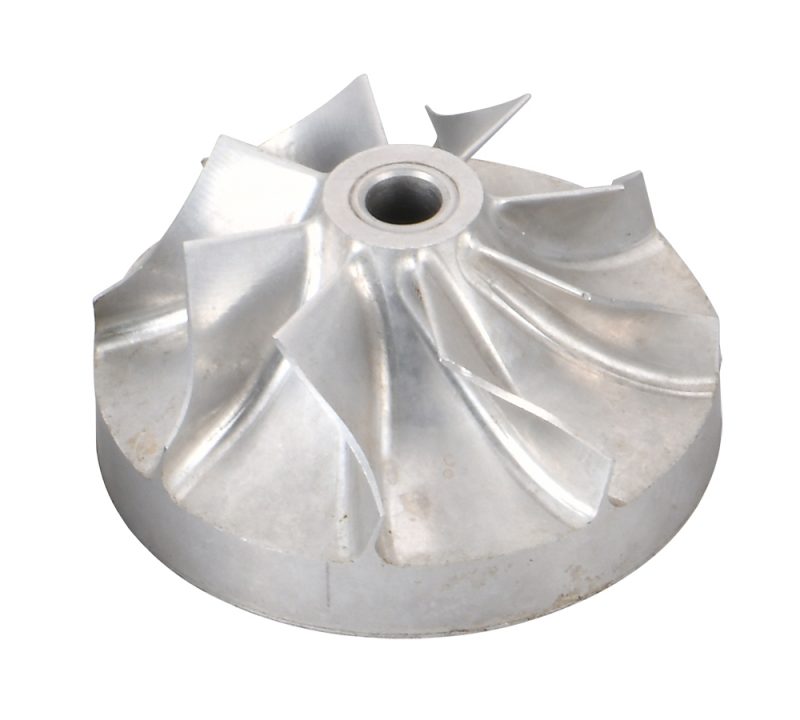

Product: Missile Bottom Cover Material: Aluminum Alloy Application: Military	Product: Turbine Material: Aluminum Alloy Application: Military	Product: Bottom Case Material: Aluminum Alloy Application: Military


Product: Encoder Box Material: Aluminum Alloy Application: Defense Aviation	Product: Middle Bezel Material: 304 Stainless Steel Application: Defense Aviation	Product: Mounting Plate Material: Aluminum Alloy Application: Defense Aviation


Product: Receiver Box Material: Aluminum Alloy Application: Defense Aviation	Product: Right Angle Plate Material: 304 Stainless Steel Application: Parts Structure	Product: Holder Material: Aluminum Alloy Application: Parts Structure


Product: Holder Material: 304 Stainless Steel Application: Parts Structure	Product: Supporting Seat Material: Aluminum Alloy Application: Parts Structure	Product: Connecting Board Material: 304 Stainless Steel Application: Mold Making


Product: Receiving Box Material: Aluminum Alloy Application: Electronics Industry	Product: Phone Base Cover Material: Aluminum Alloy Application: Phone Part	Product: Phone Base Cover Material: Aluminum Alloy Application: Phone Part


Product: Operation Case Material: Aluminum Alloy Application: Medical Instrucment	Product: Material: Aluminum Alloy Application:Fashion Accessories	Product: Multifunctional Bracket Material: Aluminum Alloy Application:Fashion Accessories

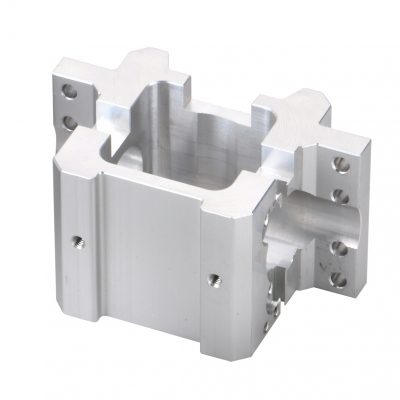

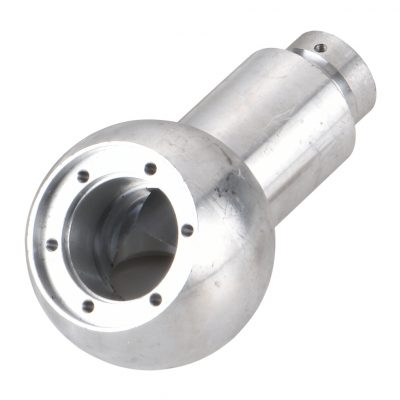

Product: Ball Head Material: Aluminum Alloy Application: Car Industry	Product: Mounting Base Material: Aluminum Alloy Application:Intelligent Equipment
