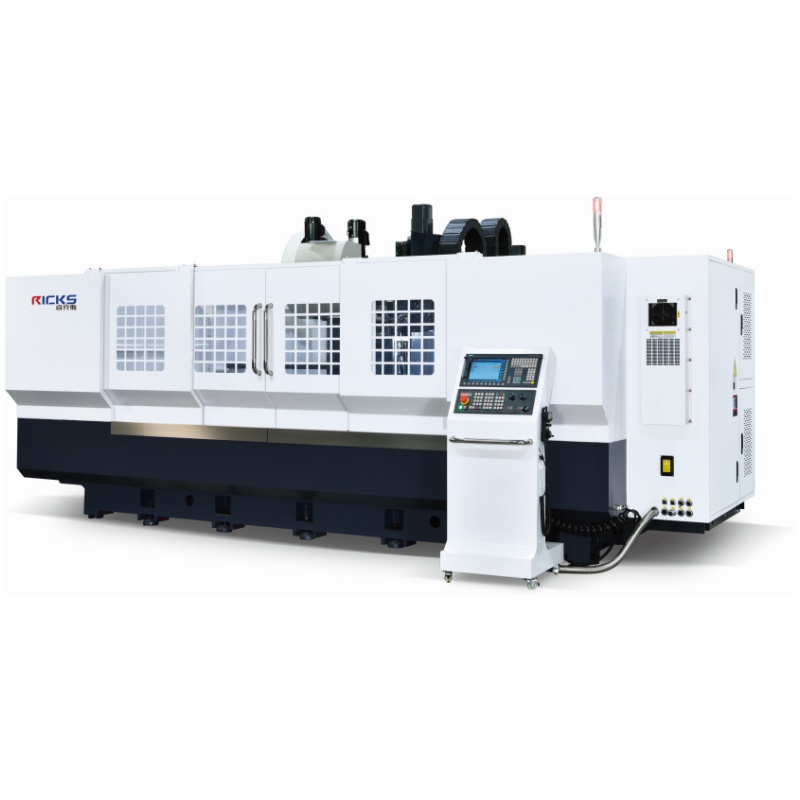

High Speed Profile Machining Center//Wonderful Machine for Producing Long Profile
APPLICATION
It mainly processes internal profiles of rail transit locomotive, narrow and long automobile parts, TV frames, refrigerator frames, communication equipment casings, aluminum alloy profiles, aluminum-wood composite profiles, copper profiles, PVC profiles, etc. in the smart home appliance industry.
|
Item |
Unit |
RKS-V25 |
|
|
Travel |
X axis travel |
mm |
2500 |
|
Y axis travel |
mm |
600 |
|
|
Z axis travel |
mm |
700 |
|
|
Distance from spindle end face to milling table |
mm |
110-810 |
|
|
Distance from spindle center to column |
mm |
634 |
|
|
Milling Table |
Table size |
mm |
3100×500 |
|
T-slot size/amount /distance |
mm/pcs/mm |
18×5×106 |
|
|
Max load on table |
kg |
1000 |
|
|
Spindle |
Spindle taper |
|
BT40 |
|
Max spindle rotation speed |
rpm |
1200 |
|
|
Tool Changer |
Tool type |
Type |
Clamp type |
|
Tool quantity |
pcs |
24 |
|
|
Max. tool diameter |
mm |
Φ78 |
|
|
Max. tool diameter (tools slots beside not occupied) |
mm |
Φ120 |
|
|
Max. tool length |
mm |
300 |
|
|
Max. tool weight |
kg |
8 |
|
|
Tool changing time |
s |
1.7 |
|
|
Speed |
Fast moving speed (X/Y/Z) |
m/min |
36/36/36 |
|
Cutting speed (X/Y/Z) |
m/min |
10/10/10 |
|
|
Accuracy |
Positioning accuracy (X/Y/Z) |
mm |
0.008 |
|
Repeat position accuracy (X/Y/Z） |
mm |
0.005 |
|
|
Others |
Air source |
L/min |
280L/min |
|
Air pressure |
bar |
6~8bar |
|
|
Dimension（L*W*H） |
mm |
5500×3000×2500 |
|
|
Weight |
kg |
9500 |
|
Standard Accessories:
1 set vise and horse iron, 4 sets tool handle and rivets, 1 pc knife lock holder, 1 set mouth&airsoft&water gun, 1 set hexagon socket
System：Mitsubishi 80B
Spindle：Xuchang/Big Yue electric spindle 12000 RPM
Tool magazine:Taiwan Square Crown/Desu 24T
Lead Screw：Taiwan HIWIN/PMI 3212-C3 grade
Rail Line：Taiwan HIWIN 30# ball
Bearing：Japan NSK P4
G.W: 9600KG
Power: 13KW
System：Japan FANUC 0i-MF (5)
Spindle：Xuchang/Big Yue electric spindle 12000 RPM
Tool magazine: Taiwan Square Crown/Desu 24T
Lead Screw：Taiwan HIWIN/PMI 3212-C3 grade
Rail Line：Taiwan HIWIN 30# ball
Bearing：Japan NSK P4
G.W: 9600KG
Power: 13KW
|
Item |
Unit |
RKS-V25 |
|
|
Travel |
X axis travel |
mm |
2500 |
|
Y axis travel |
mm |
600 |
|
|
Z axis travel |
mm |
700 |
|
|
Distance from spindle end face to milling table |
mm |
110-810 |
|
|
Distance from spindle center to column |
mm |
634 |
|
|
Milling Table |
Table size |
mm |
3100×500 |
|
T-slot size/amount /distance |
mm/pcs/mm |
18×5×106 |
|
|
Max load on table |
kg |
1000 |
|
|
Spindle |
Spindle taper |
|
BT40 |
|
Max spindle rotation speed |
rpm |
1200 |
|
|
Tool Changer |
Tool type |
Type |
Clamp type |
|
Tool quantity |
pcs |
24 |
|
|
Max. tool diameter |
mm |
Φ78 |
|
|
Max. tool diameter (tools slots beside not occupied) |
mm |
Φ120 |
|
|
Max. tool length |
mm |
300 |
|
|
Max. tool weight |
kg |
8 |
|
|
Tool changing time |
s |
1.7 |
|
|
Speed |
Fast moving speed (X/Y/Z) |
m/min |
36/36/36 |
|
Cutting speed (X/Y/Z) |
m/min |
10/10/10 |
|
|
Accuracy |
Positioning accuracy (X/Y/Z) |
mm |
0.008 |
|
Repeat position accuracy (X/Y/Z） |
mm |
0.005 |
|
|
Others |
Air source |
L/min |
280L/min |
|
Air pressure |
bar |
6~8bar |
|
|
Dimension（L*W*H） |
mm |
5500×3000×2500 |
|
|
Weight |
kg |
9500 |
|
Standard Accessories:
1 set vise and horse iron, 4 sets tool handle and rivets, 1 pc knife lock holder, 1 set mouth&airsoft&water gun, 1 set hexagon socket
System：Mitsubishi 80B
Spindle：Xuchang/Big Yue electric spindle 12000 RPM
Tool magazine:Taiwan Square Crown/Desu 24T
Lead Screw：Taiwan HIWIN/PMI 3212-C3 grade
Rail Line：Taiwan HIWIN 30# ball
Bearing：Japan NSK P4
G.W: 9600KG
Power: 13KW
System：Japan FANUC 0i-MF (5)
Spindle：Xuchang/Big Yue electric spindle 12000 RPM
Tool magazine: Taiwan Square Crown/Desu 24T
Lead Screw：Taiwan HIWIN/PMI 3212-C3 grade
Rail Line：Taiwan HIWIN 30# ball
Bearing：Japan NSK P4
G.W: 9600KG
Power: 13KW
